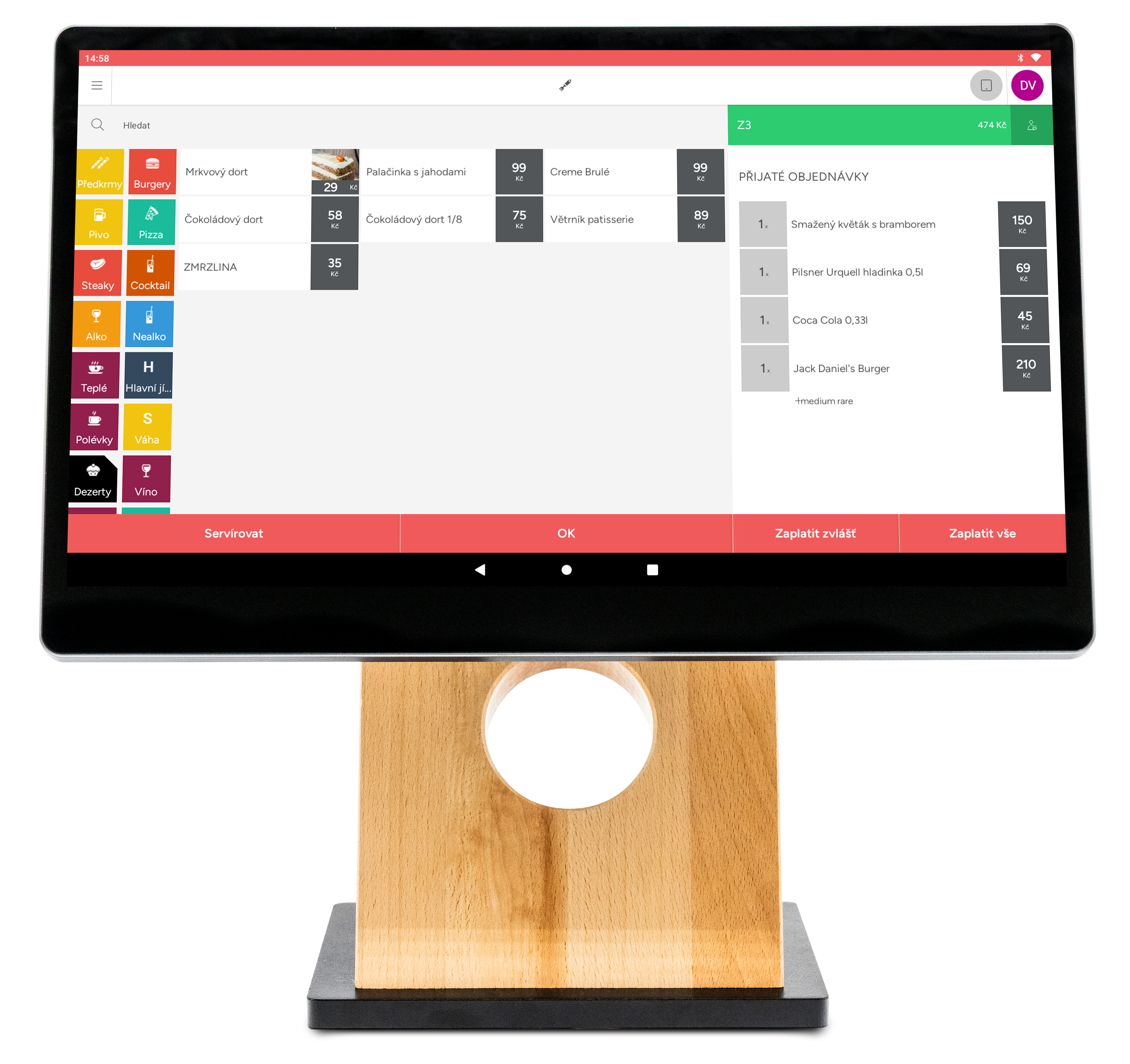

iMin Swan 1K is a sleek and powerful device with a large touchscreen display that runs on the Android 11 operating system.
Landscape Interface and Table Map
If you install the tablet in landscape orientation, the Landscape mode will automatically activate. In this mode, all table categories appear one below the other, and tables within those categories are displayed side-by-side for better clarity (in portrait mode, all tables are shown below each other).

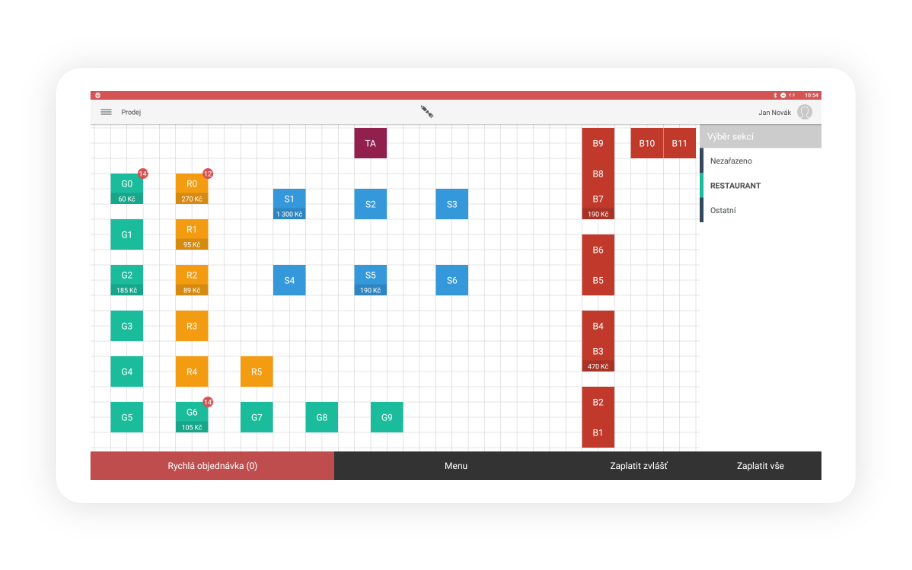

Another way to use the display is with the Table Map mode. This allows you to arrange tables according to the layout of your establishment. It gives you a better overview of table occupancy and layout.
In landscape mode, you select and add bills to open tables via a dialog box. You can access this by holding your finger on the selected table.
Landscape mode is preconfigured on all 14-inch or larger devices. To activate it, simply rotate your device's screen to horizontal orientation.
Hardware
iMin Swan 1K is designed for stationary use and does not contain a battery, ensuring stable operation with continuous power. Its large display allows for convenient control of POS software like Storyous.
Specifications
- Display: 15.6" Full HD (1920 × 1080 px) with IPS technology
- Dimensions: 386 × 248 × 30 mm
- Mounting: VESA 75/100 mm compatible
- Placement: Can be mounted on a desk or wall
- Processor: 8-core ARM Cortex-A55
- RAM: 2 GB
- Storage: 16 GB eMMC
- Operating System: Android 11
- Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth 4.2
- Ports: USB, LAN RJ45, 3.5 mm audio jack
- Power Supply: External adapter (no battery)
