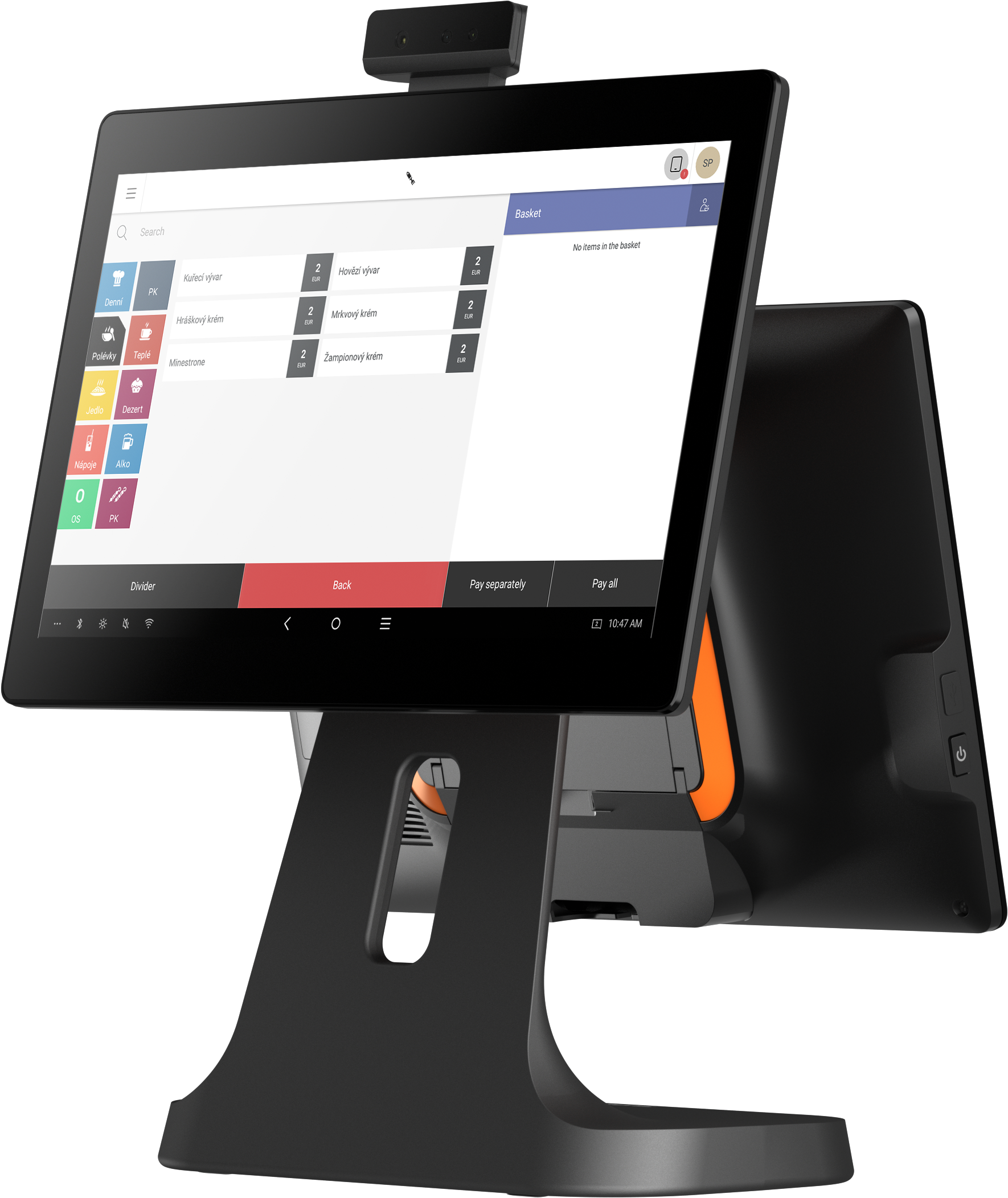

Sunmi T2s Lite is a modern all-in-one POS system with a large touchscreen display, suitable for restaurants, cafés, or retail stores. It combines easy operation, fast connectivity, and support for fiscal memory, enabling efficient handling of receipts, payments, and sales management.
Connecting to Power
Connect the power cable to the adapter.
Attach the cable to the device at the bottom after opening the cover.
Plug the device into a power outlet.
Press and hold the power button on the left side of the tablet briefly (≈3 seconds).
The blue indicator light will turn on when the device powers up.
Tip:
|
First Setup
After powering on, the welcome screen will appear for language selection (verified with Storyous Care).
Next, set the time zone and internet connection.
Connecting to the Internet
The device supports Wi-Fi, LAN, and mobile data (SIM card).
Wi-Fi
Open Settings → Wi-Fi.
Select your network.
Enter the password.
LAN
Connect an Ethernet cable to the LAN port at the bottom of the device.
Mobile Data
On the back right side of the device, there are two covers.
Open the bottom cover and insert a SIM card with active data.
Inserting the Fiscal Memory Card (CHDÚ)
Every fiscal device must include a certified fiscal memory CHDÚ (SWISSBIT microSD card).
Insert the card on the back right side of the device – the CHDÚ port is located under the bottom cover.
Each device has its own card, so never swap cards between devices.
Note: All fiscal operations are recorded on the CHDÚ: receipts, cancellations, cash movements (except daily closure), and invoice payments. For fiscal setup in the administration, you will need authentication and identification XML files. |
Downloading the Storyous App
Open the App Store.
Search for and download the Storyous app.
On the first launch, the app will request a license key – this can be obtained from customer support.
Specifications
Processor (CPU): Kryo-260, octa-core up to 2.2 GHz
Memory / Storage: 3 GB RAM + 32 GB ROM or 4 GB RAM + 64 GB ROM
Operating System: Android 9.0 with Sunmi OS
Display: 15.6″ Full HD (1920×1080)
Network & Connectivity: Wi-Fi 2.4 GHz / 5 GHz (a/b/g/n/ac), LAN 100 Mbps (RJ45), Bluetooth 2.1/3.0/4.0/5.0 (BLE), Optional 2G/3G/4G (SIM card)
Slots & Ports: 5 × USB type A, 1 × RJ11 (serial), 1 × RJ12 (cash drawer), 1 × RJ45 (LAN), 1 × audio jack, 1 × micro-USB (debugging)
Camera: Optional in configurations with a second display (standard or face recognition)
Speaker: 1 × 1.2 W
Dimensions / Weight: 430 × 382 × 215 mm, weight depends on configuration: 4.5–6.8 kg
Power Supply: Input: AC 100–240 V / 1.5 A, Output: DC 24 V / 1.5 A
Memory Cards: microSD (TF) up to 64 GB
